Industrial Cable Pulling Machine with Force Control, 30 kN

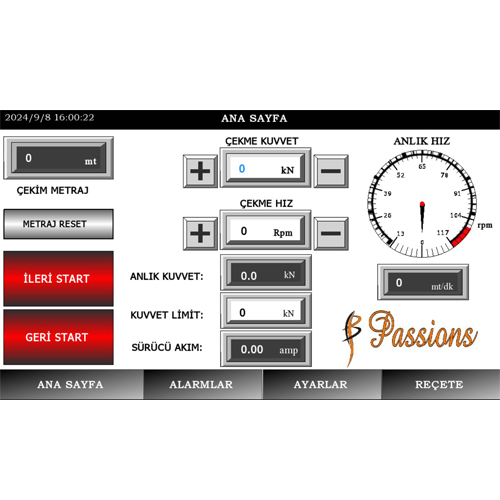

Our industrial cable pulling machines are manufactured in our facilities by our expert staff and teams, undergoing various tests considering the challenging conditions of construction sites. Our industrial electric cable pulling machines are equipped with specialized software and are fully certified. Thanks to their ergonomic design, our industrial electric cable pulling machines are easy to transport and install. Thanks to their specialized software, our industrial cable pulling machines can limit the force applied to the pulled cable, monitor the applied force in real time, and display the pulled meter speed on tablet screens, both instantly and in total. Our industrial cable pulling machine has data-capturing capabilities, providing data on all operations via USB and storing it in memory.
The standard tonnage of our industrial cable pulling machines is listed below.
Cable pulling machine with 10 kN (1000 kg) pulling capacity
Cable pulling machine with 20 kN (2000 kg) pulling capacity
Cable pulling machine with 30 kN (3000 kg) pulling capacity
Cable pulling machine with 40 kN (4000 kg) pulling capacity
Cable pulling machine with 50 kN (5000 kg) pulling capacity
The technical specifications of our industrial cable pulling machine are as follows.
| Tensile Force | 30 kN (3000 KG) |
| Pulling Speed | 15 mt / dk |
| Working System | Electric |
| Engine | 380V Electric Motor |
| Length | 850 mm |
| Width | 400 mm |
| Height | 350 mm |
| Weight | 85 kg |
